Standard type roller shutter opener SH-A Series

Short Description:

*This type of Roller Shutter Opener is easy & convenient to use, it is suitable for 300-500KG roller shutter.

*Copper wire motor, stable, durable & good in cooling.

*High quality alloy steel gear, guarantee high lifting performance.

*Low level noise & vibration.


Product Detail

Product Tags

Quick Details

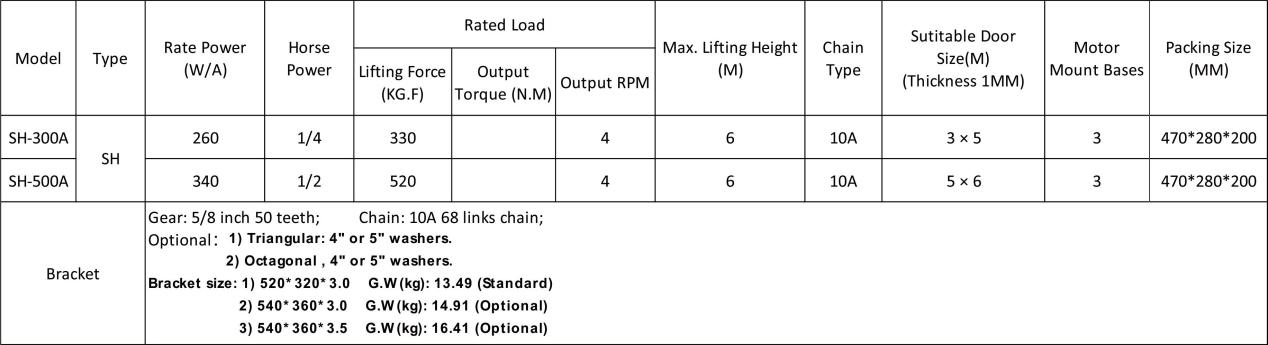

52

Featuring

*This type of Roller Shutter Opener is easy & convenient to use, it is suitable for 300-500KG roller shutter.
*Copper wire motor, stable, durable & good in cooling.
*High quality alloy steel gear, guarantee high lifting performance.
*Low level noise & vibration.
*Integrated circuit design, safe to use and easy to repair.
*Service life of gear exceeds 40,000 times.

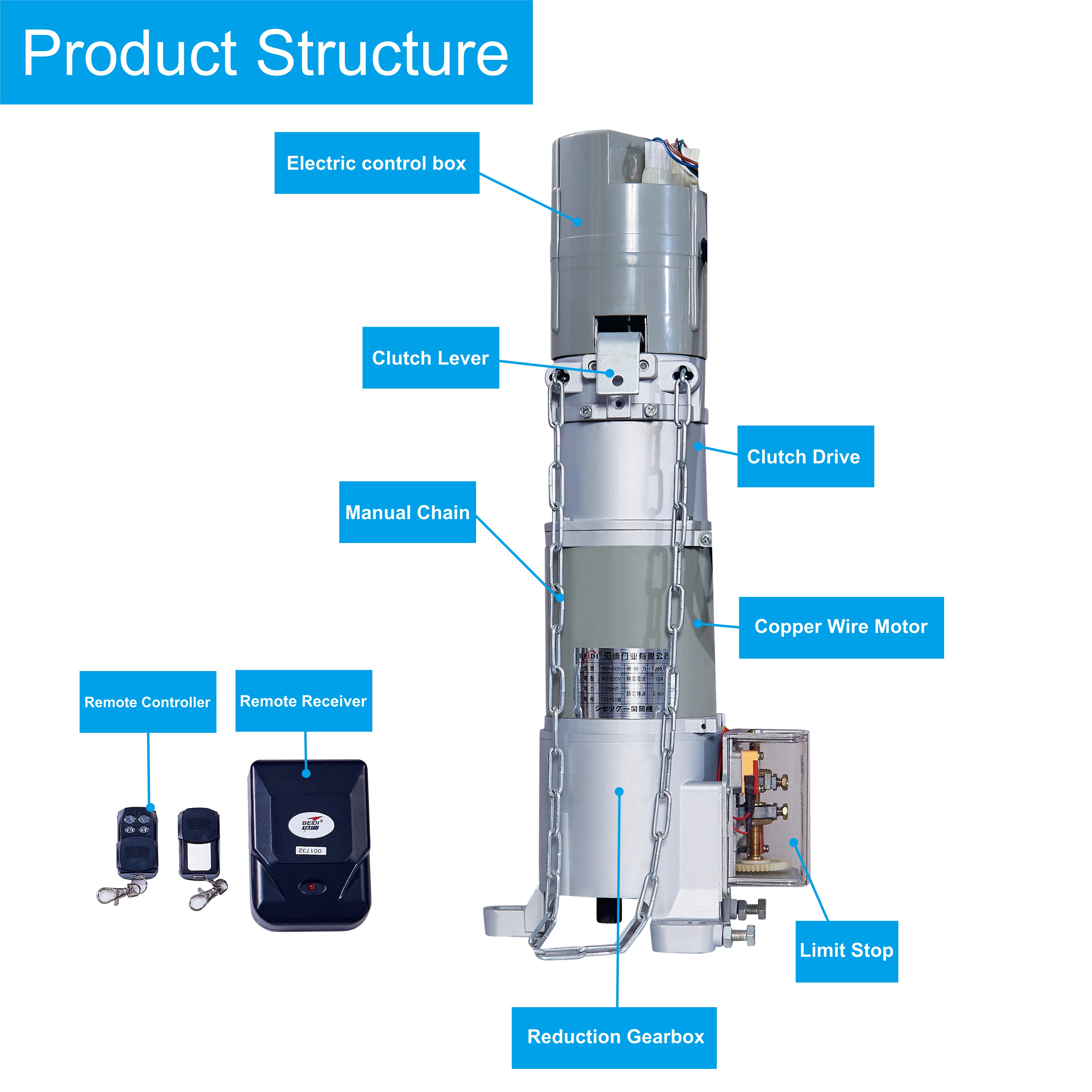

Product Structure

roller (1)

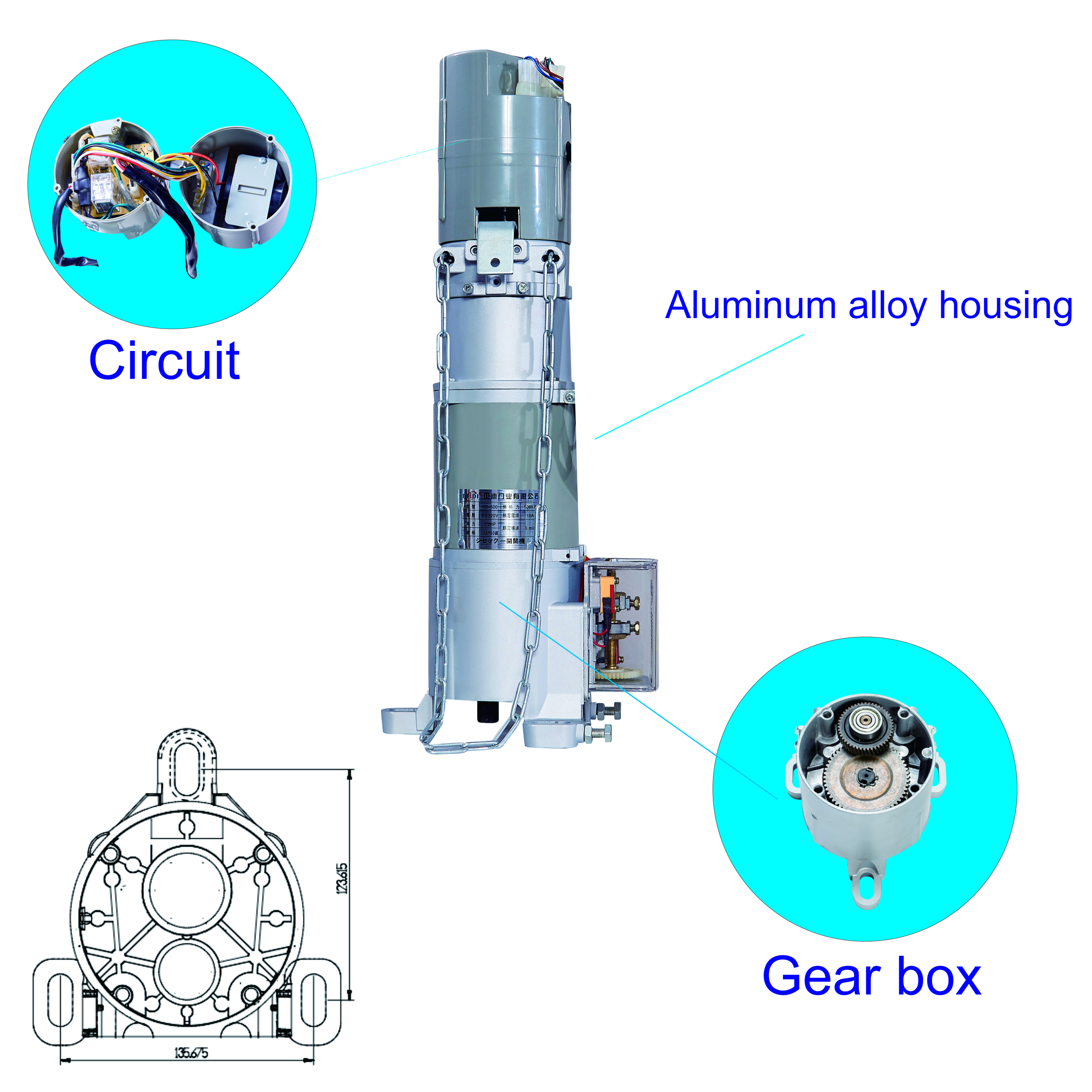

BD-SHA卷门机修改缩放

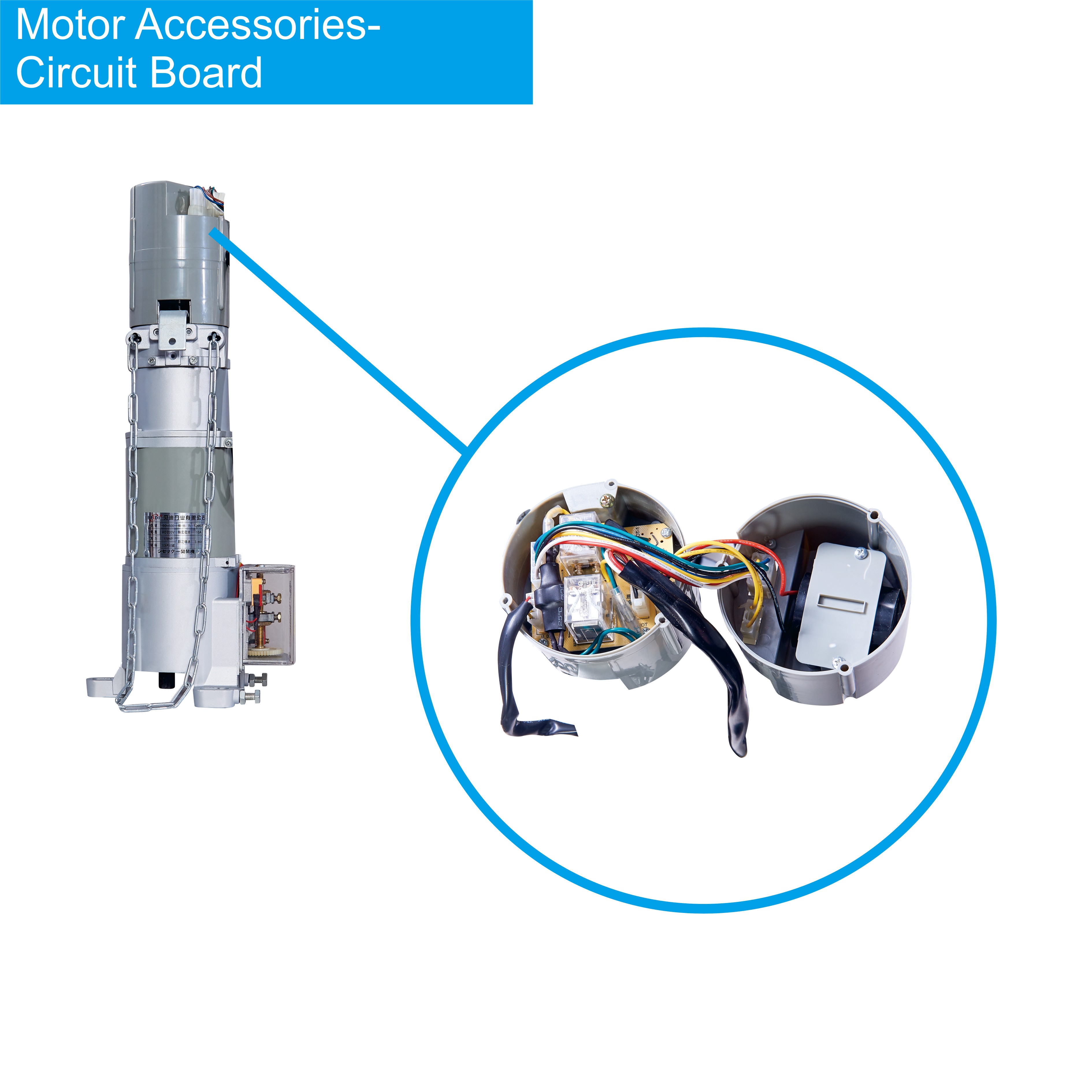

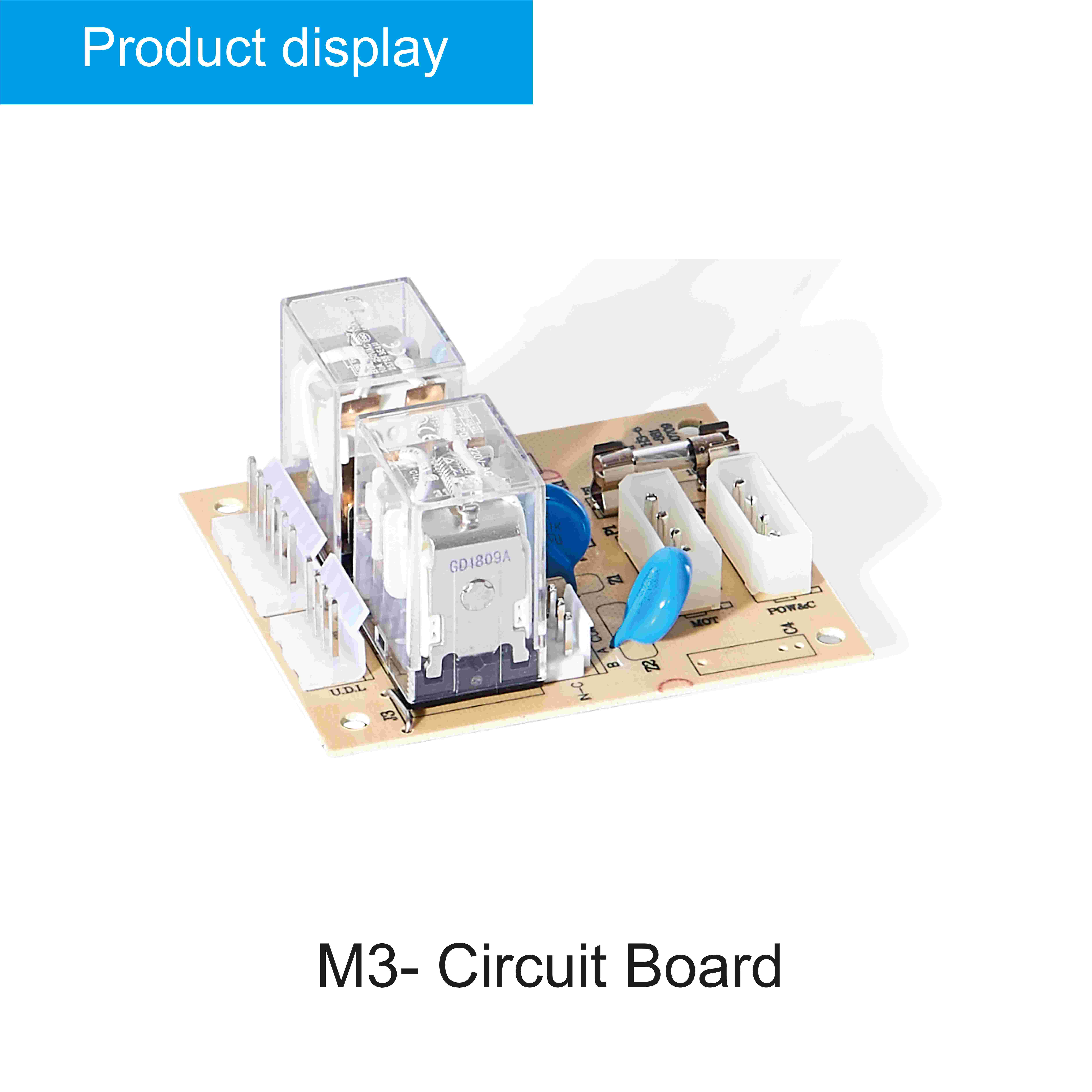

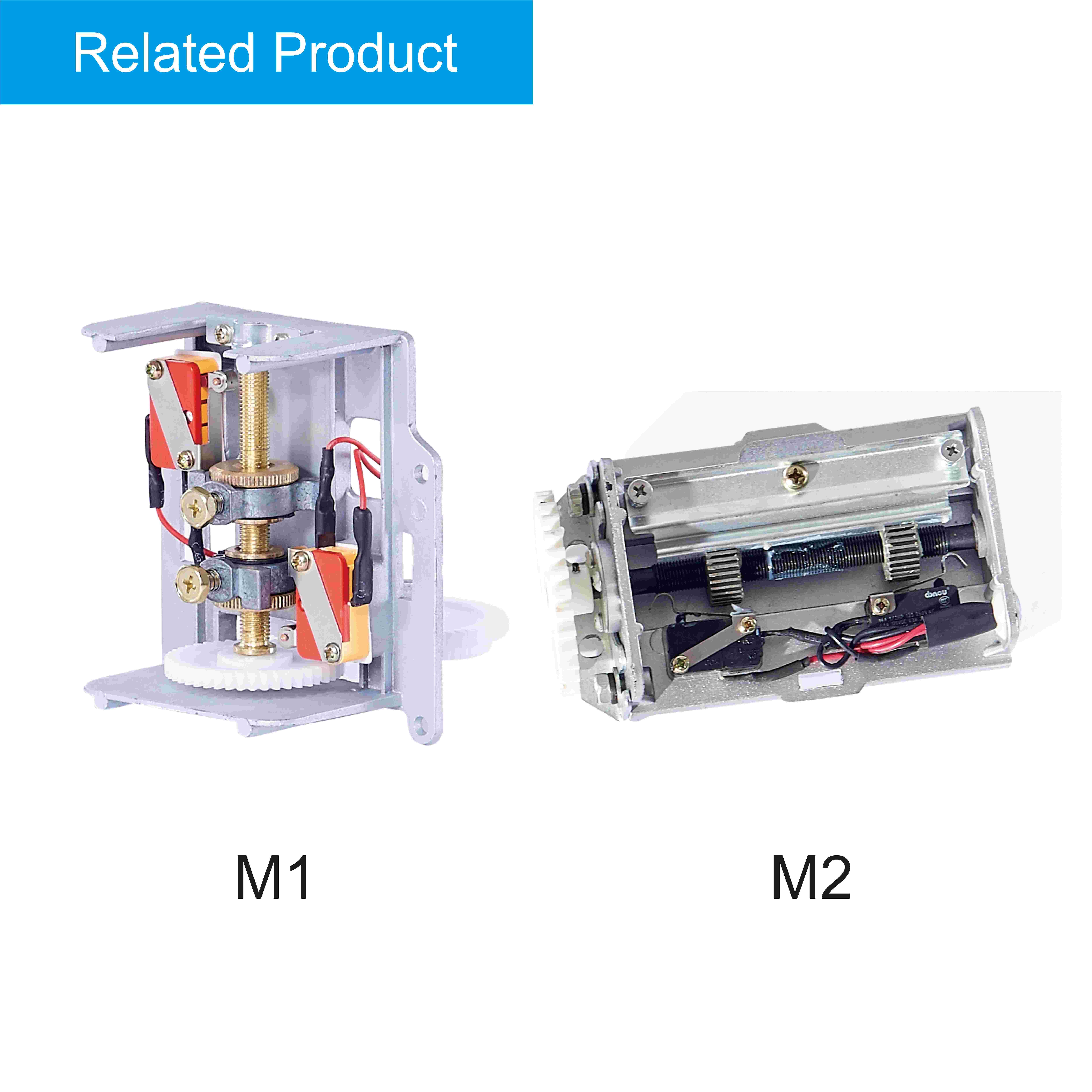

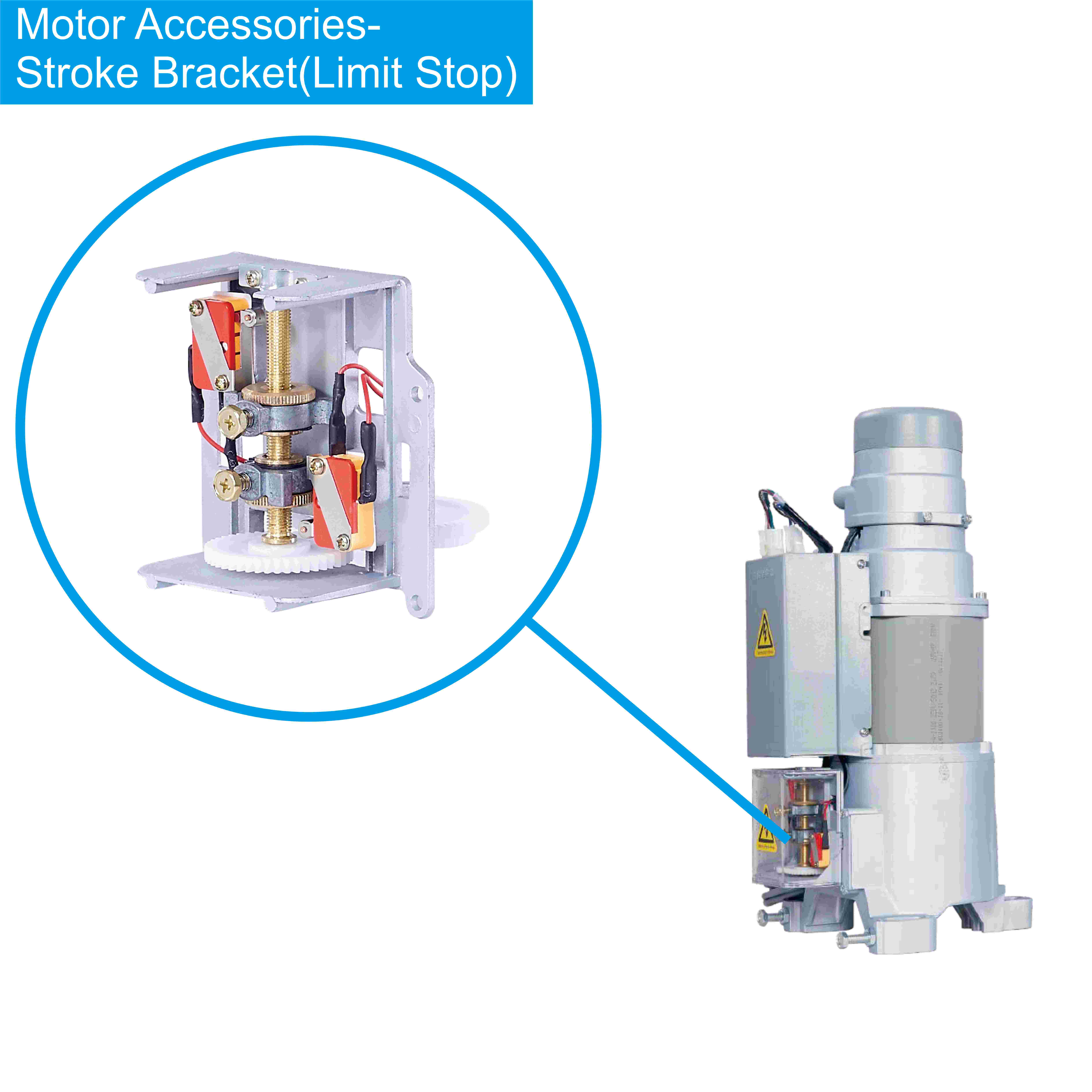

Accessories list

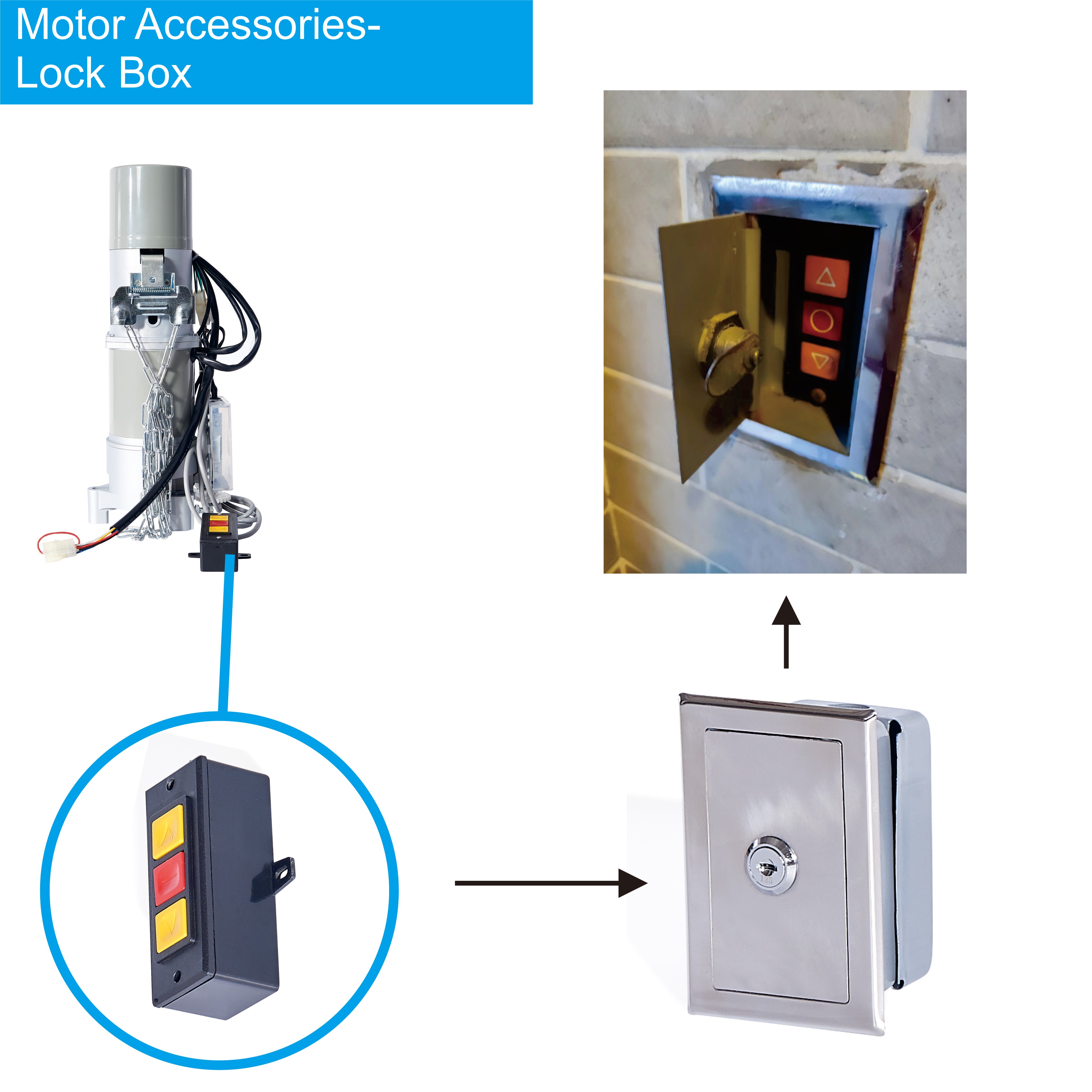

ROLLER SHUTTER MOTOR ACCESSORY-M4-LOCK BOX-1
ROLLER SHUTTER MOTOR ACCESSORY-M5-LOCK BOX-1

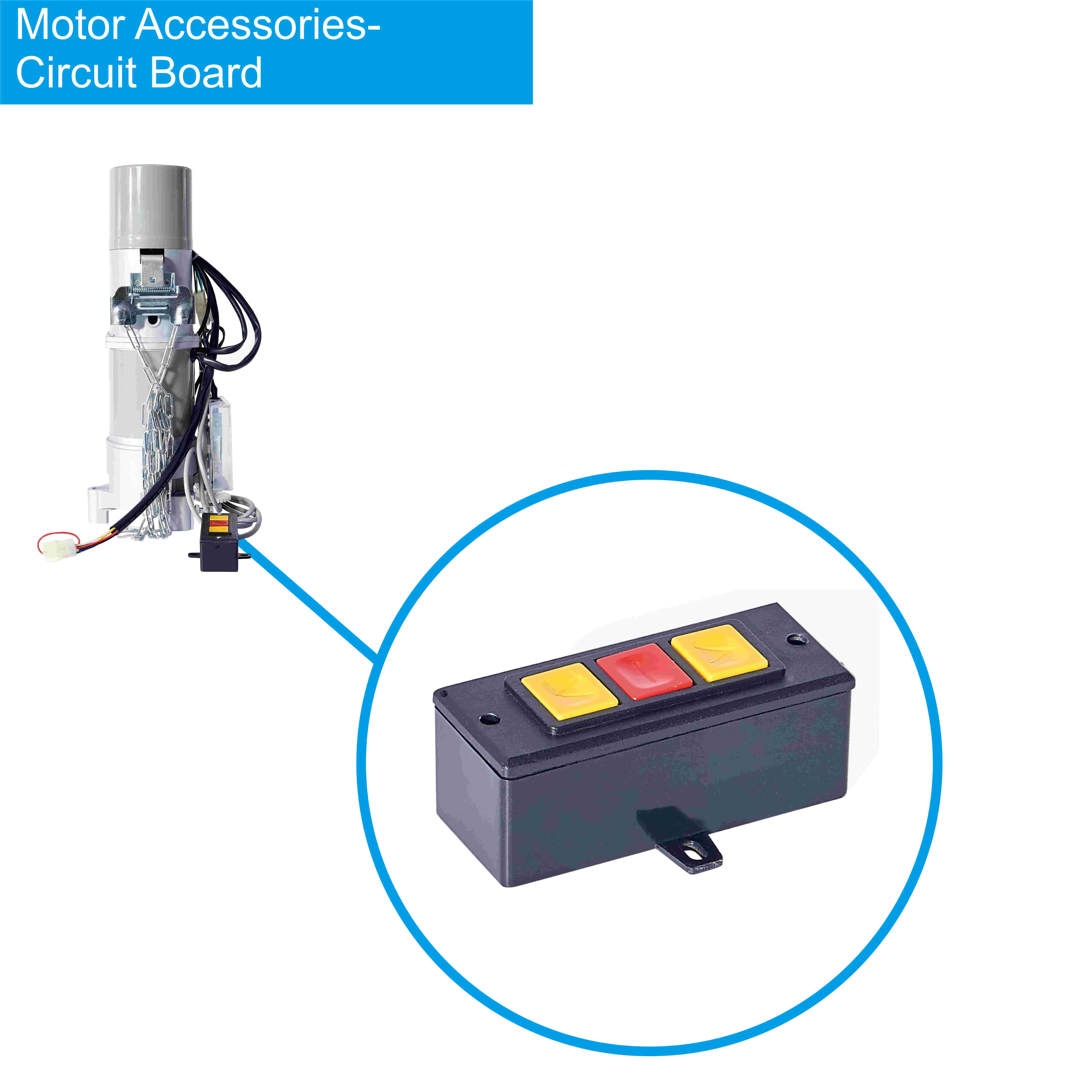

ROLLER SHUTTER MOTOR ACCESSORY-M6-BUTTON SWITCH-1

1.Accessories for the motor

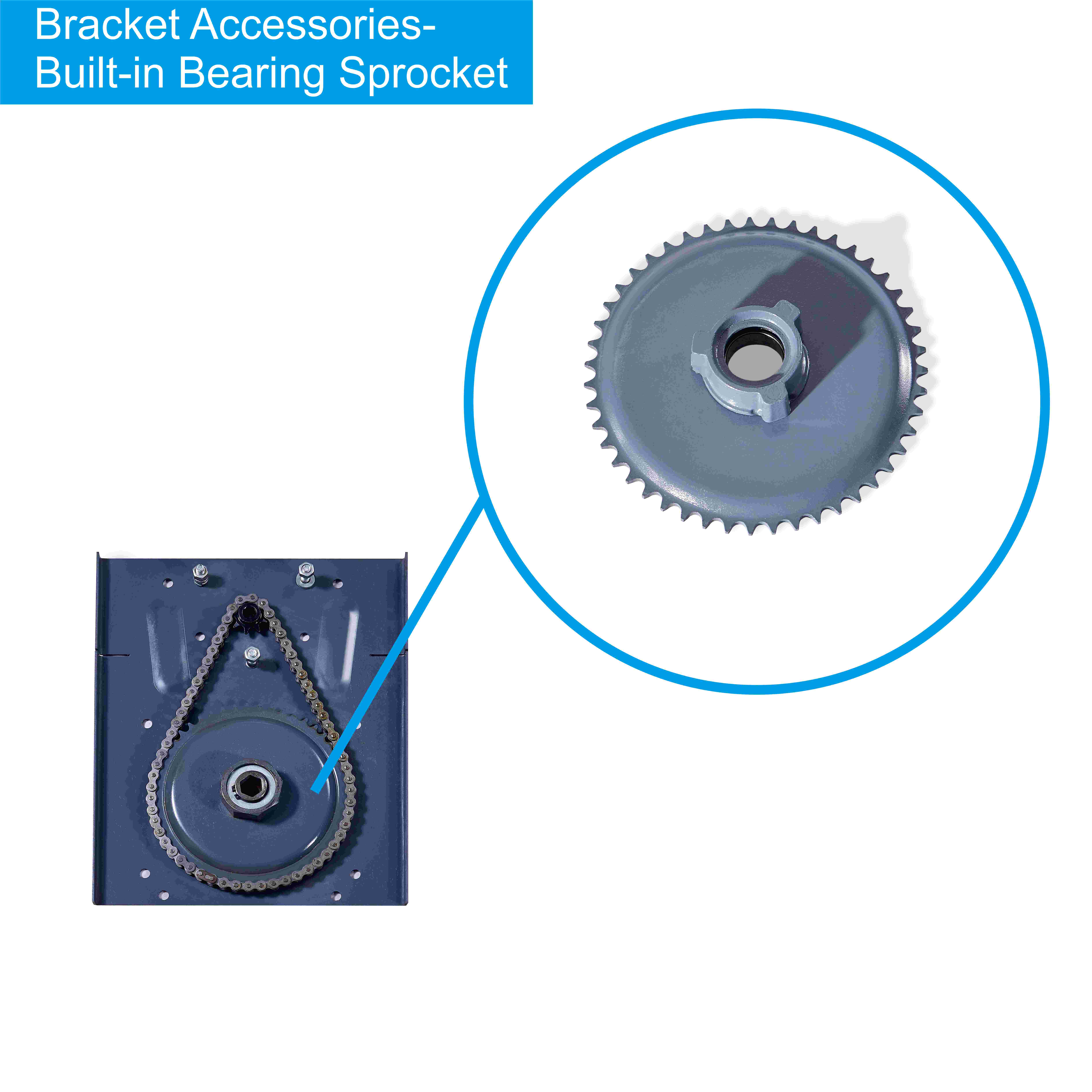

B1 built in bearing sprocket-1
B2 built in bearing sprocket-1
B3 built in bearing sprocket-1
B4 Flange-1
B5 Flange-1
bracket accessory B6 Flange-1

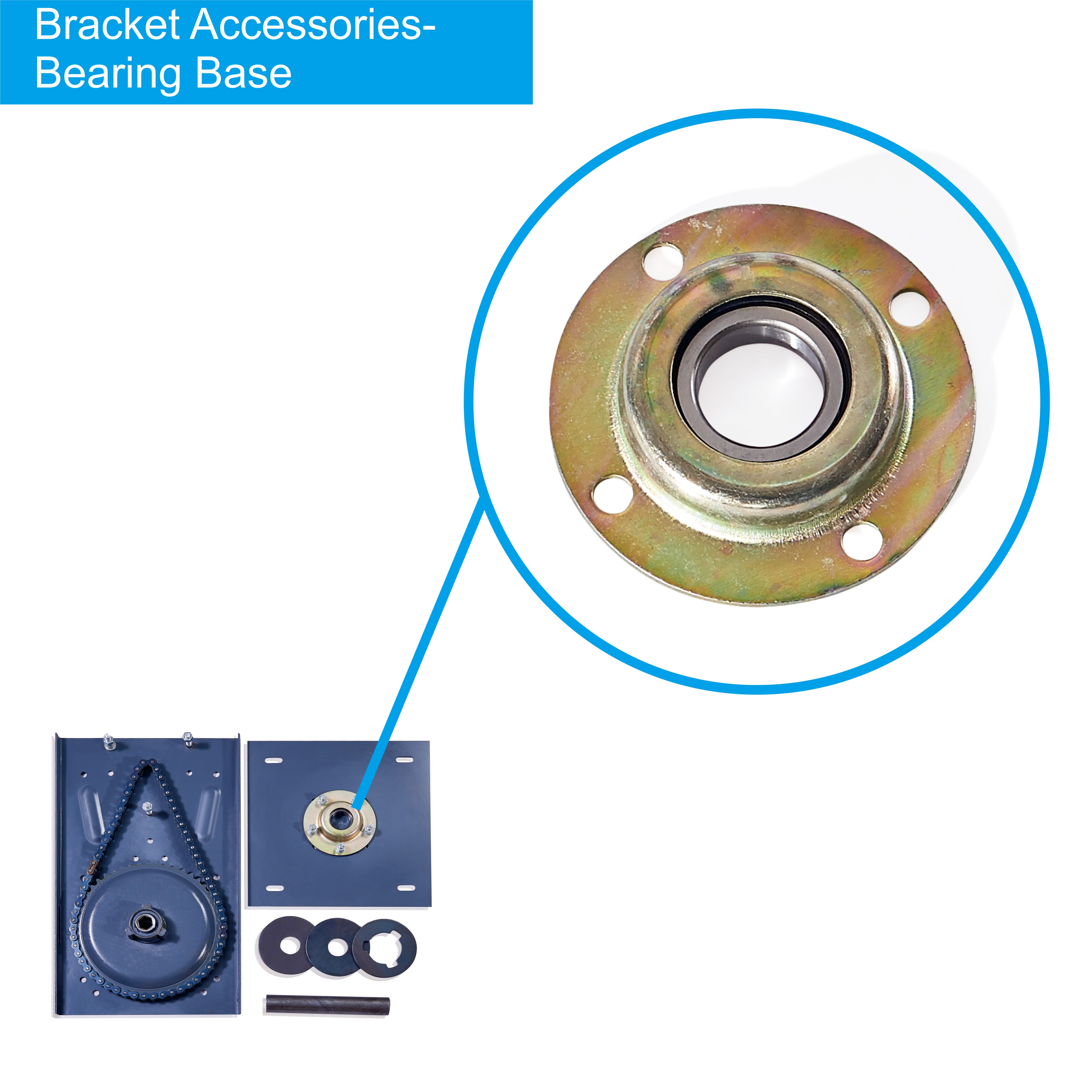

B7 Bearing base-1
制动拨叉缩放
B8 Bearing base-1
副板轴B11缩放
B9 Bearing base-1
副板轴B12缩放

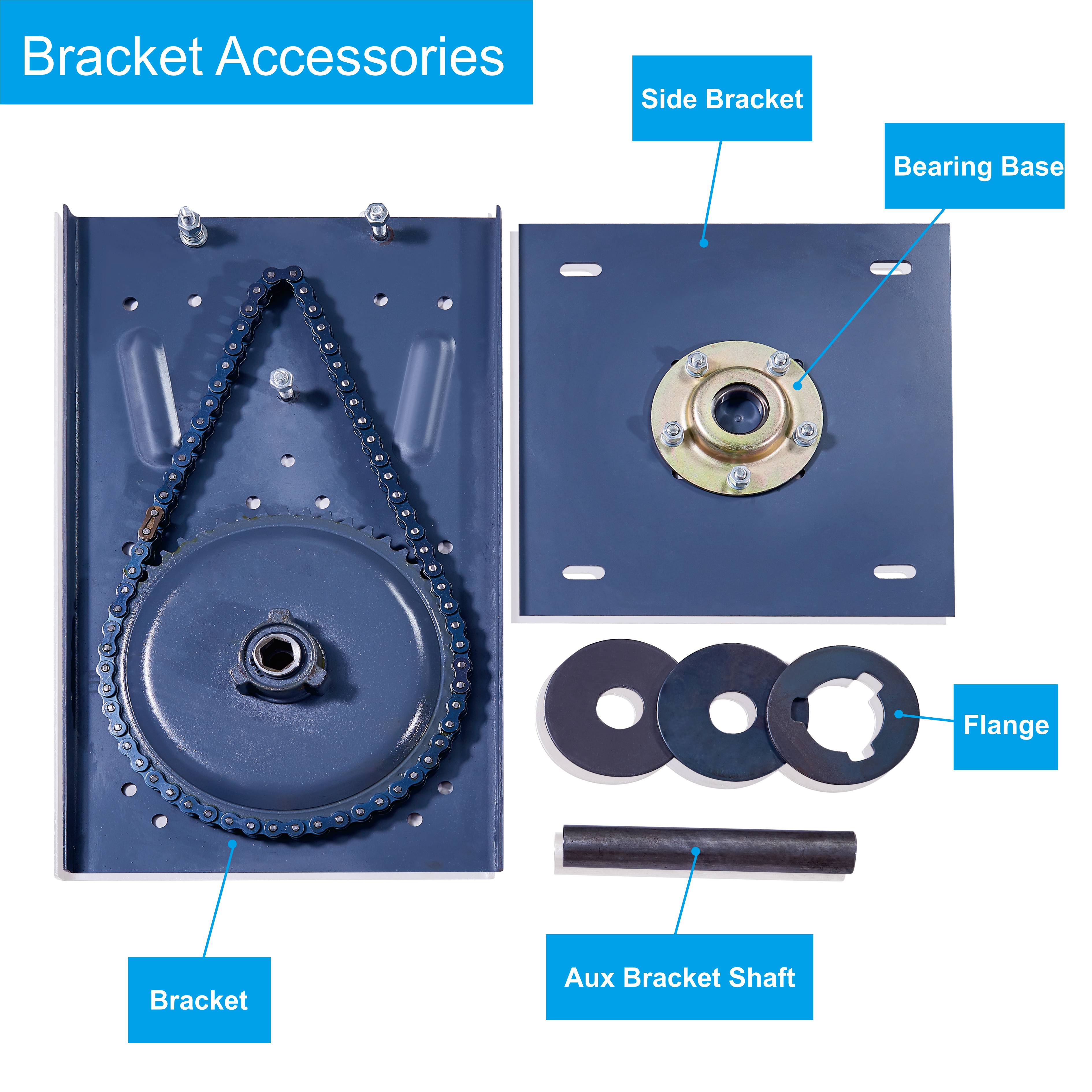

2.Accessories for the bracket

Optional Remoted controll

ROLLER SHUTTER MOTOR ACCESSORY-BDR1-REMOTE CONTROL-3

Installation and working principle of BEIDI rolling gate motor

The first point: the installation of the motor
1. Before the test machine, loosen the locking screw of the limit mechanism:
2. Then pull the ring chain by hand to make the curtain door about 1 meter above the ground:
3. First try the "Up", "Stop" and "Down" buttons: observe whether the functions of raising, stopping and lowering the rolling door are sensitive and reliable: if normal, you can raise or lower the door curtain to the position you determined:
4. Rear rotation limit screw sleeve: adjust to touch the micro switch roller: after hearing the sound of "dida": tighten the locking screw:
5. Repeated debugging: When the limit reaches the best position: then tighten the locking screw with your fingers. The rolling door machine should be installed horizontally: the door curtain reel should be concentric and horizontal, and the curtains should not be stuck.
7. Adjust the sag of the chain to 6-10mm (adjust before the shaft is not hung with the curtain).
8. The cross-section of the external power line for the power supply of the rolling door machine is not less than 1mm
9. The opening and closing of the electric rolling door motor only needs to operate the switch button: the rolling door stops automatically after it is in place.
10. If you want to stop in the middle: when the rolling door is rising or falling: operate the stop button.
11. Another advantage of the electric rolling gate is that in the case of a power failure: you can also operate the manual mechanism: hand-pulled ring chain: the rolling gate rises slowly: stop pulling when it is in place:
12. Do not exceed the original limit height: in order to avoid over-block damage limit pull switch.
13. Lightly pull the self-weight pull rod: the rolling door slides down at a constant speed: when it is close to closing: loosen the self-weight drop rod: then pull it again to fully close.
Note: 1. When pressing the "Up" and "Down" buttons: If there is no action: immediately press the middle "Stop" button.

Usage Notice

● The rolling gate machine is a short-time work system, and the continuous operation time should not exceed 7 minutes;
● The operation of the rolling door is controlled by the remote control or the "up", "down" and "stop" buttons on the remote control. When pressing the "up" and "down" keys, if there is no upward or downward movement, you must press the "stop" key to cut off the power immediately to avoid burning the motor;
● In the event of a power failure, use the hand zipper to raise the door curtain. It is strictly forbidden to exceed the set height to avoid damage to the limit switch and causing the top; to close the door curtain, you can gently pull the manual lever to make the door curtain drop at a uniform speed. When the door curtain is about to be fully closed, it should be released Pull the rod, and then pull it again to fully close to prevent damage to the limit switch;
● When there is a thunderstorm in the weather, disconnect the external power source as much as possible;
● When using the rolling door machine, the operator shall not leave the scene, and should immediately cut off the power supply if the abnormal situation is found, and then use it again after troubleshooting.
